Mooer Graphic G
- Details
- Specification
- Video

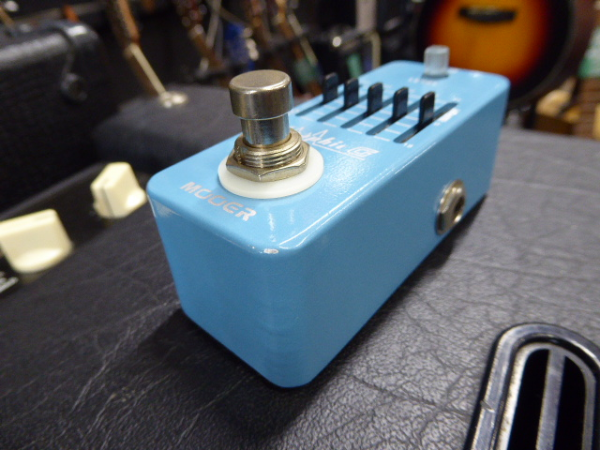

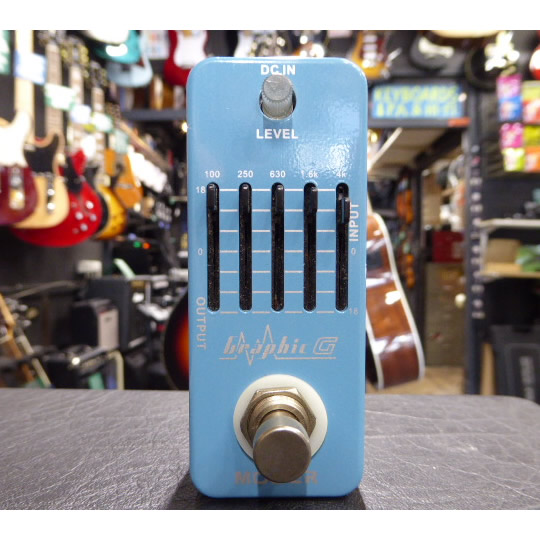

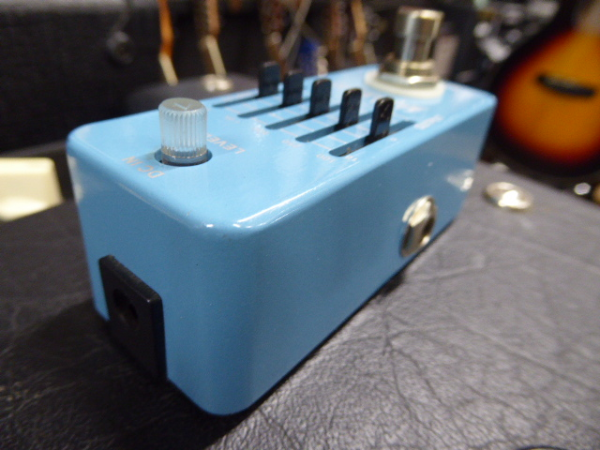

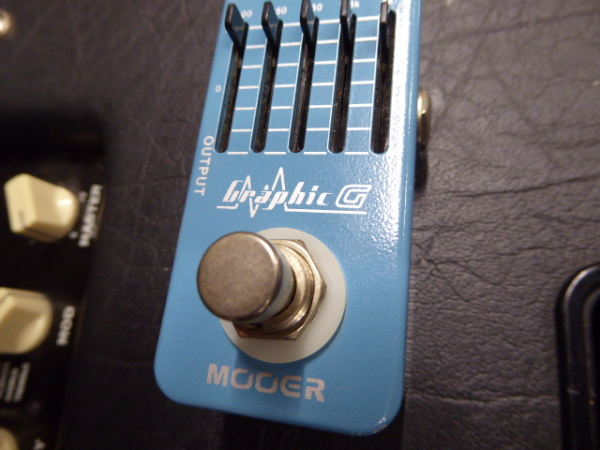

The Mooer Micro Graphic EQ Guitar Pedal is a stompbox that offers massive control over your tone in a tiny and compact micro size - it's the smallest guitar equalizer pedal in the world. The Micro Graphic EQ is ideal for artists who want to fine tune their sound without taking up too much pedalboard room. It's based on a legendary graphic equalisation pedal which is still loved the world over.
The Micro Graphic EQ allows up to +/- 18dB gain range for each of the five bands. These range all the way from 100Hz to 4kHz for excellent versatility. With an additional Level control, the Graphic EQ offers a boost or cut your ideal sound, or increase the output for more live projection. Want to tighten up your rhythm tone? Go for it. Need a quick midrange boost for your solos? Just dial it in and stomp it on! The Micro Graphic EQ Guitar features True Bypass, which preserves the tone by eliminating any signal interference when the pedal is not in use.
Versatile 5-Band Equaliser

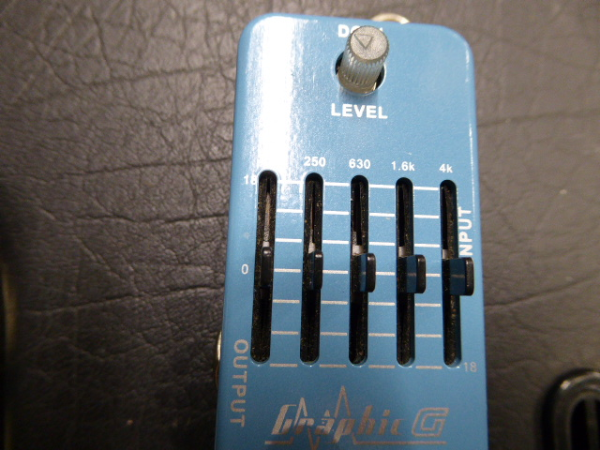

The Micro Graphic EQ is equipped with five bands of adjustable EQ, which can be shaped and fine-tuned to find your ideal sound. The bands can easily be altered by pushing the sliders to your desired level, by +/-18dB of gain range. They cover 100Hz, 250Hz, 630Hz, 1.6kHz and 4kHz, frequencies, and there is also a Level knob that is for controlling the level of the overall EQ output for that extra boost, cut or projection when needed.
EQ Bands: 100Hz, 250Hz, 630Hz, 1.6kHz, 4kHz
Input: 1/4" Monaural Jack
Input Impedance: 470k
Output: 1/4" Monaural Jack
Output Impedance: 1k Ohms
Power Requirements: AC Adapter 9V DC (Recommend Mooer Micro Power)
Current Draw: 7 mA
Dimensions: 93.5mm (D) x 42mm (W) x 52mm (H)
Weight: 160g
