Mono 5-band parametric EQ.

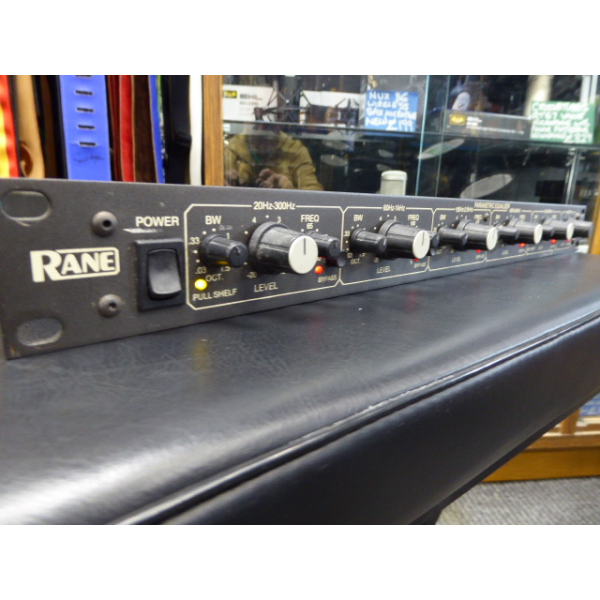

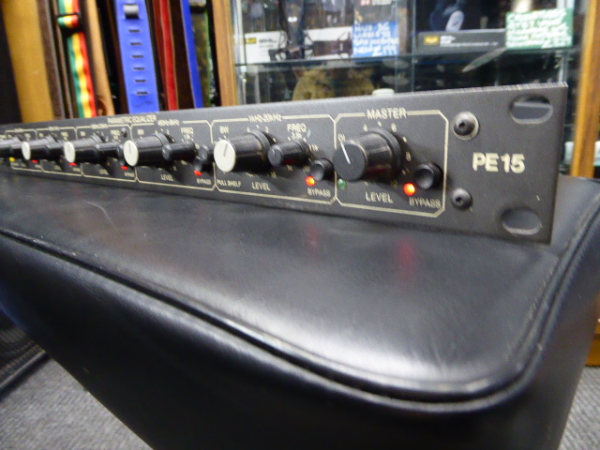

The Rane Model PE 15 Parametric Equalizer incorporates
all the required features of a parametric equalizer and full-
function notch filter set.

Each of the five filters in the PE 15 cover a center Frequency range of four octaves, a Bandwidth of .03 to 1.5 octaves, and a boost/cut range of +15 dB to -20 dB.

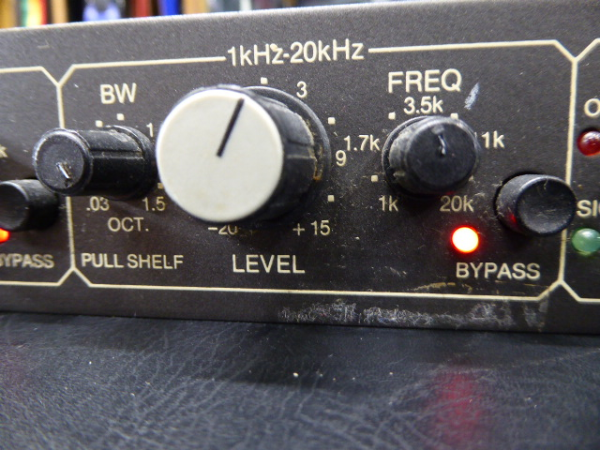

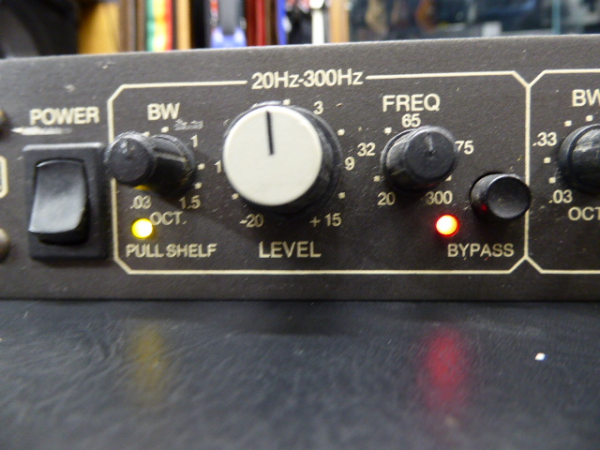

Bands one and five switch to allow peaking or
shelving characteristics.

The unit has a range that begins with the sharpest of notch filters and continues through broad-band program contouring.

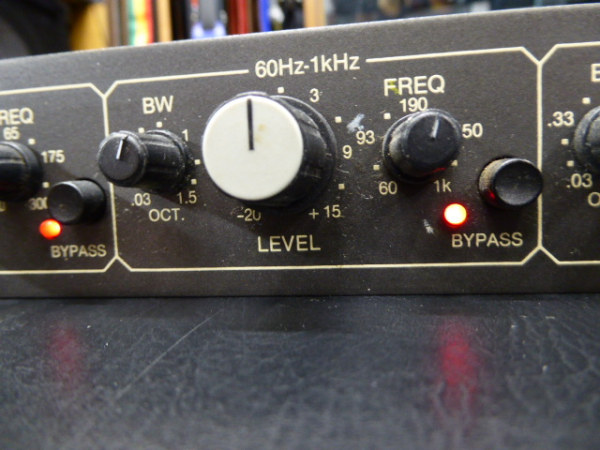

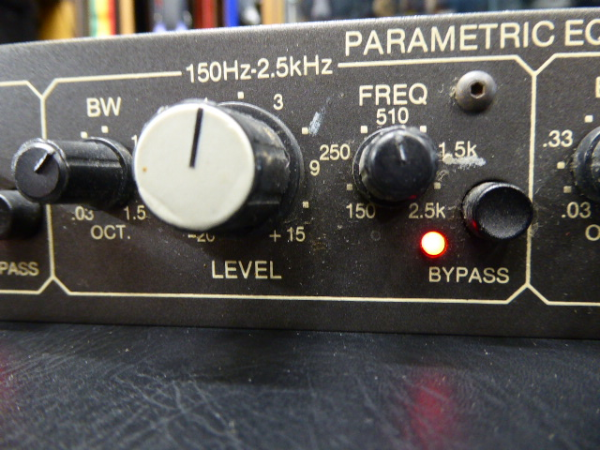

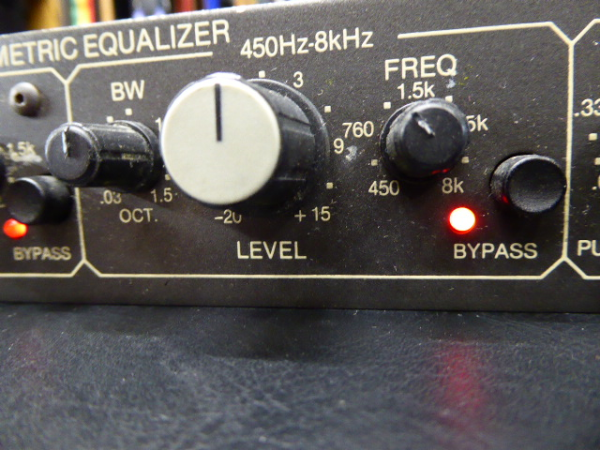

Each Filter in the PE 15 may be individually Bypassed via
a front panel switch, allowing the operator to audibly audition
the effect of each Filter.

An overall Bypass provides a “hard-wire” from the Input connector to the Output connector, completely defeating all effects of the unit.

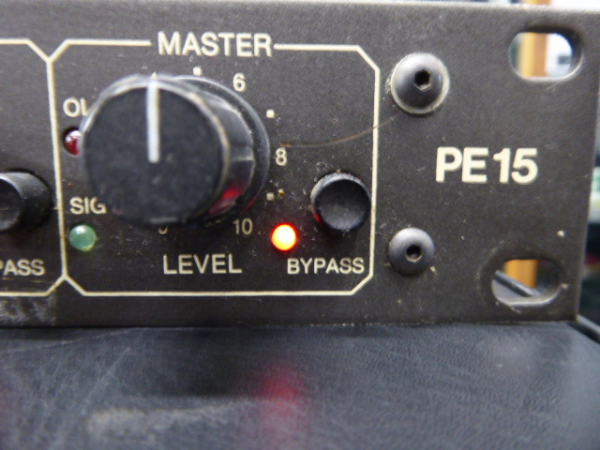

An overall Master Control Level is provided which covers a range of completely off to +20 dB.

Front panel includes individual Bypass and Overload indicators for each band.

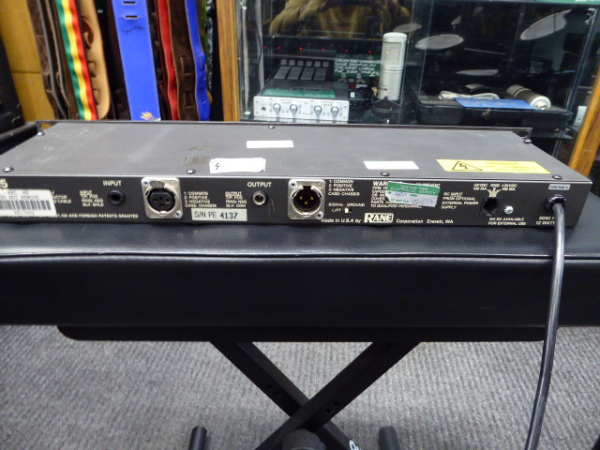

The rear panel provides both XLR as well as ¼" Inputs
and Outputs.
